Welded Mesh Gabions – Galfan Finish

Welded Mesh Gabions – Galfan Finish

Product Code:
Availability: In Stock

Price range: £15.69 through £226.00/ Each includes UK delivery & VAT

Background Grid

Description

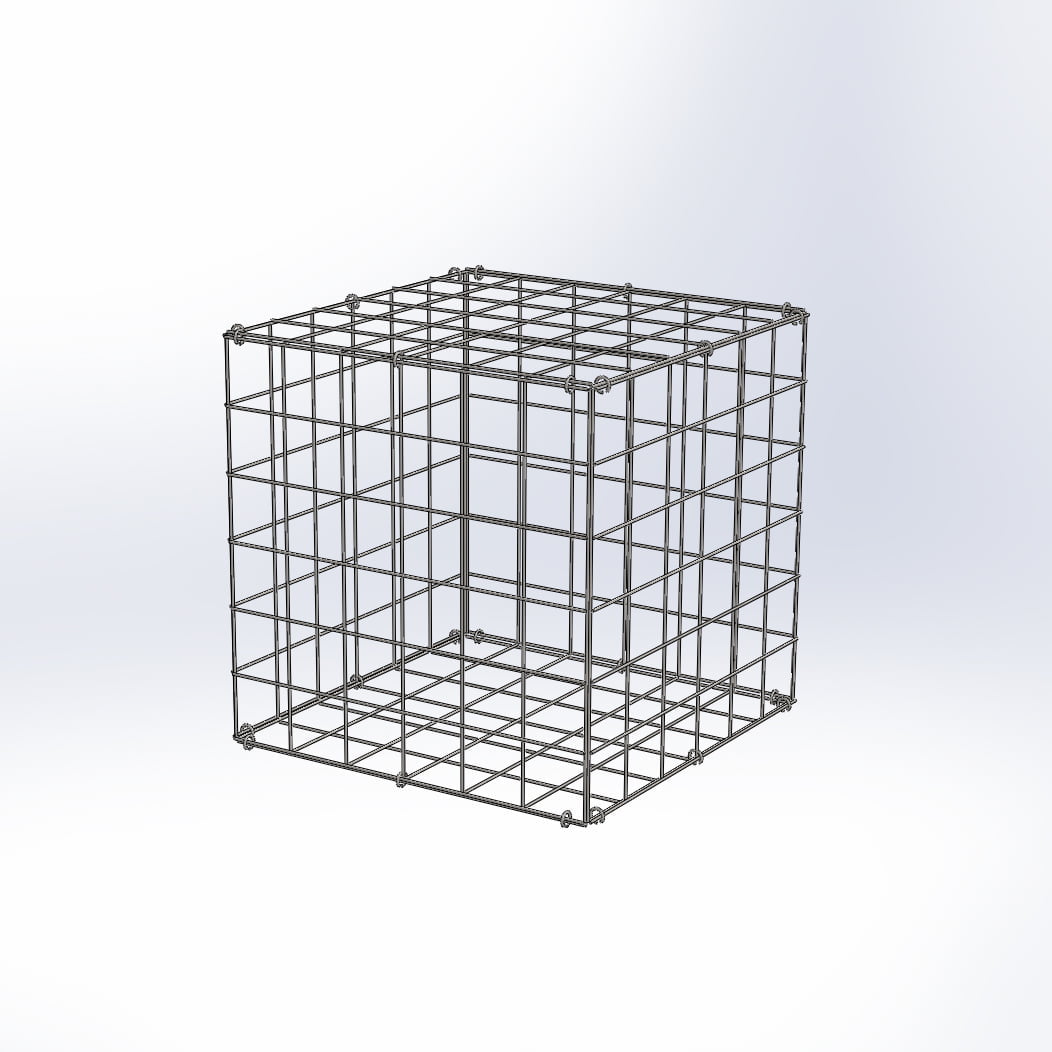

Bi-axial welded mesh gabions are manufactured from a square mesh, normally of opening size 75.0mm × 75.0mm where the longitudinal wires are welded to the cross wires at their intersection points.

This type of fabric manufacture produces a dimensionally stable mesh. The mesh is produced in standard sheets which are then cut into the required panel sizes (and partially factory-connected) to form the flat pack unit.

Welded mesh gabions can be readily modified on site by cutting the mesh back to the next transverse mesh wire. Welded mesh gabions are available in a number of wire diameters to suit the application or can be manufactured in a combination of mesh-wire specifications to provide economy in supply. The resultant gabions’ flexibility is dependant upon the choice of wire diameter.

Where two types of stone fill are required, additional loose panels can be supplied and fitted on site to separate the two types of fill materials.

Specification
Fabric Type: Bi-axial welded mesh
Tensile Strength (wire): Welded: 540 to 770 N/mm²
Weld Strength: 75% of the minimum ultimate tensile strength of the wire

Additional information

WeightN/A
DimensionsN/A
Size

0.5 x 0.5 x 0.5m 3mm, 1.0 x 0.5 x 0.5m 3mm, 1.0 x 1.0 x 0.5m 3mm, 1.0 x 1.0 x 1.0m 3mm, 1.5 x 1.0 x 0.5m 3mm, 1.5 x 1.0 x 1.0m 3mm, 2.0 x 0.5 x 0.5m 3mm, 2.0 x 1.0 x 0.5m 3mm, 2.0 x 1.0 x 1.0m 3mm, 0.5 x 0.5 x 0.5m 4mm, 1.0 x 0.5 x 0.5m 4mm, 1.0 x 1.0 x 0.5m 4mm, 1.0 x 1.0 x 1.0m 4mm, 1.5 x 1.0 x 0.5m 4mm, 1.5 x 1.0 x 1.0m 4mm, 2.0 x 0.5 x 0.5m 4mm, 2.0 x 1.0 x 0.5m 4mm, 2.0 x 1.0 x 1.0m 4mm, 0.5 x 0.5 x 0.5m 5mm, 1.0 x 0.5 x 0.5m 5mm, 1.0 x 1.0 x 0.5m 5mm, 1.0 x 1.0 x 1.0m 5mm, 1.5 x 1.0 x 0.5m 5mm, 1.5 x 1.0 x 1.0m 5mm, 2.0 x 0.5 x 0.5m 5mm, 2.0 x 1.0 x 0.5m 5mm, 2.0 x 1.0 x 1.0m 5mm

Usually bought with

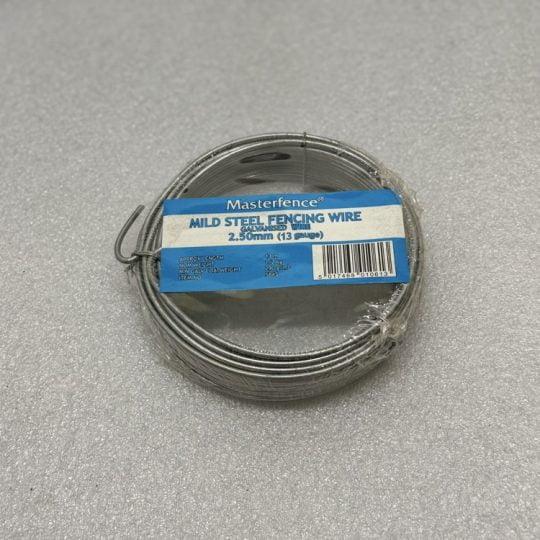

Gabion Lacing Wire Coil

Recommended for: Lacing wire is supplied as standard on gabion units for all joints. Additional Lacing Wire can be purchased from Corden as required.
£9.32 / Each
View Product

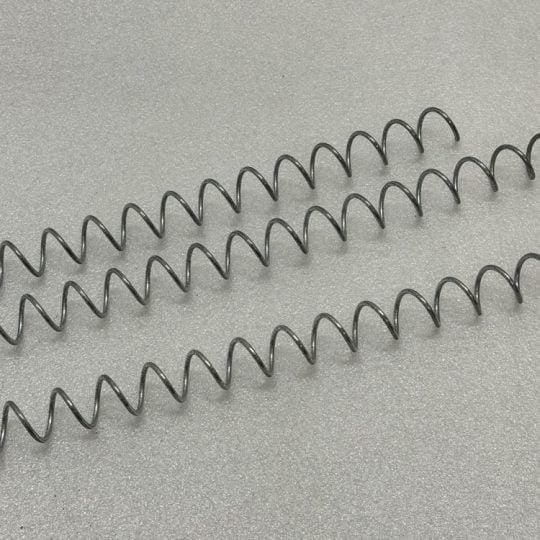

Gabion Helical
